Cylindrical elements

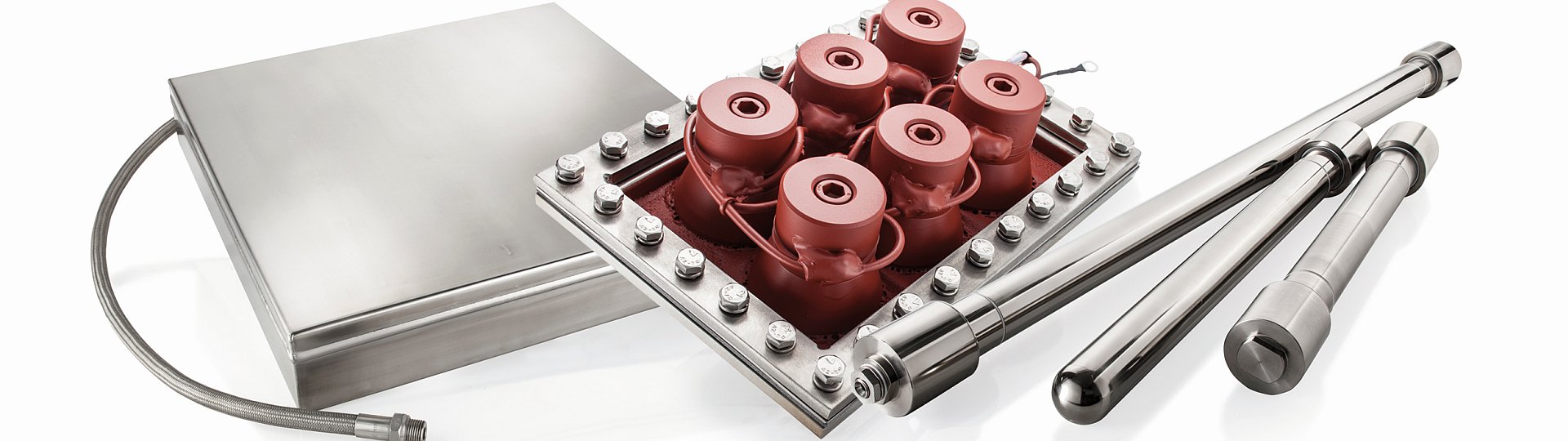

Ultrasonic build-in elements

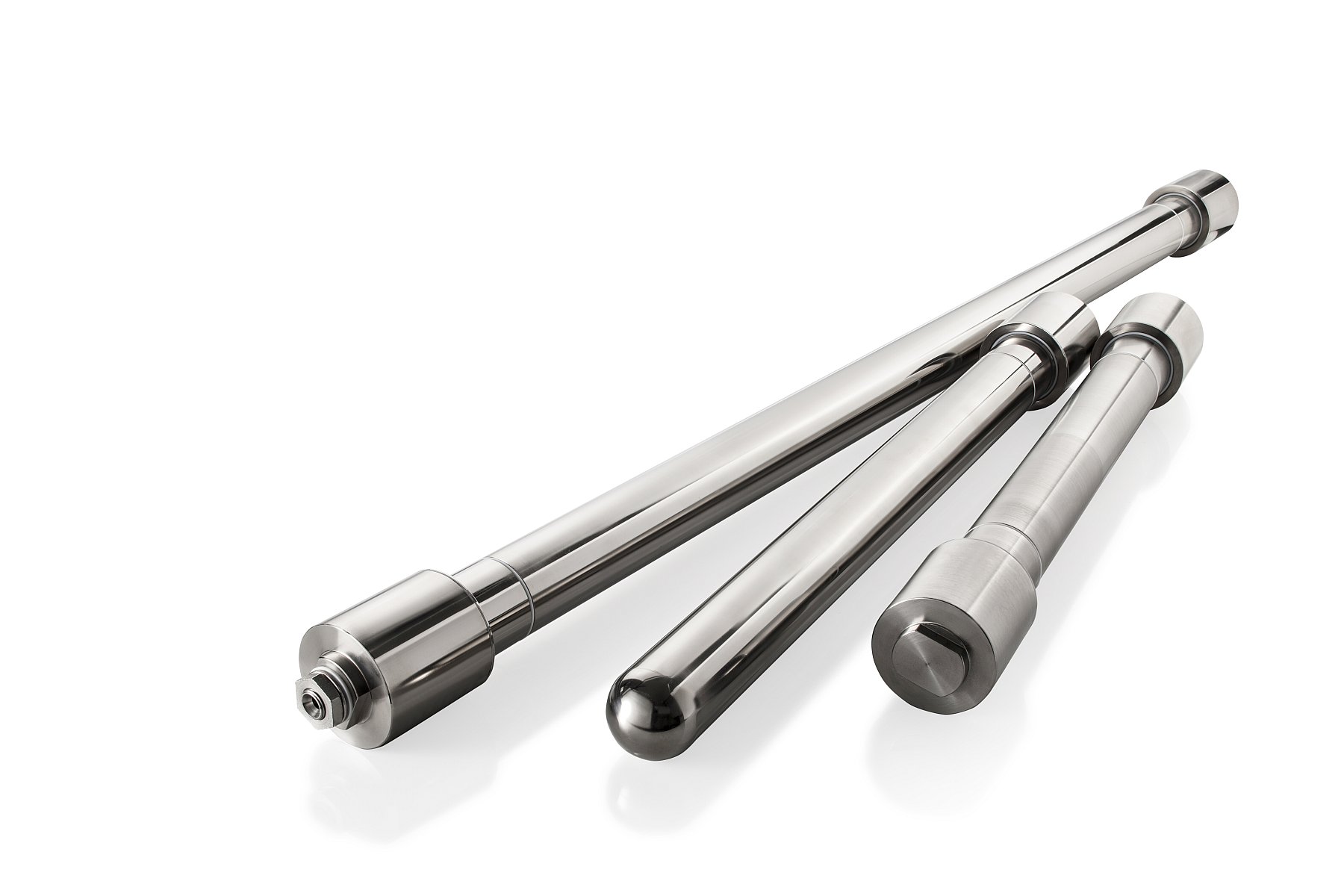

This extended program cylindrical elements whose the Push-Pull technology is the most well-known offers a powerful and sustainable solution to transfer ultrasonic energy into a cleaning medium. A cylindrical, made out of bar stock material in Stainless Steel or Titanium resonator system offers new possibilities for applications where the implementation of ultrasonic energy difficult or even was not possible.
Cylindrical elements are a solution to transfer ultrasonic energy into a medium.
The technology

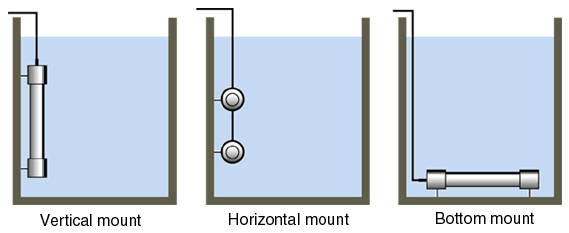

The ultrasound converters mounted at each end of the resonator rod induce longitudinal pulses in the resonator at the points of attachment. Due to the resonations over the entire length of the resonator, transverse vibrations are induced, leading to radial emissions of ultrasonic energy about the resonator. The ultrasonic waves will be strengthens by walls and/or bottom of the tank and transfer a high ultrasonic energy into the cleaning medium.
Advantages
- Exceptionally long service life assured by solid resonator.
- Use of special titanium ensures high degree of efficiency (>95%).
- This permits cost savings through the reduction in energy consumption.
- Emissions of ultrasonic energy from the resonator itself ensures a homogeneous sonic field.
- Minimal space requirement permits simple retrofitting, even to existing systems.
- By contrast with conventional immersion resonators, modular construction permits easy repairs.
- Simple, rapid installation
- Automatic internal identification of dry-running condition in the absence of cleaning liquid.
Please raise your question
VARICLEAN benelux bv is specialist in ultrasonic cleaning for industrial and professional applications. On base of your cleaning requirement we would be pleased to provide you the right advise and an adequate solution.
