Flange plate transducers

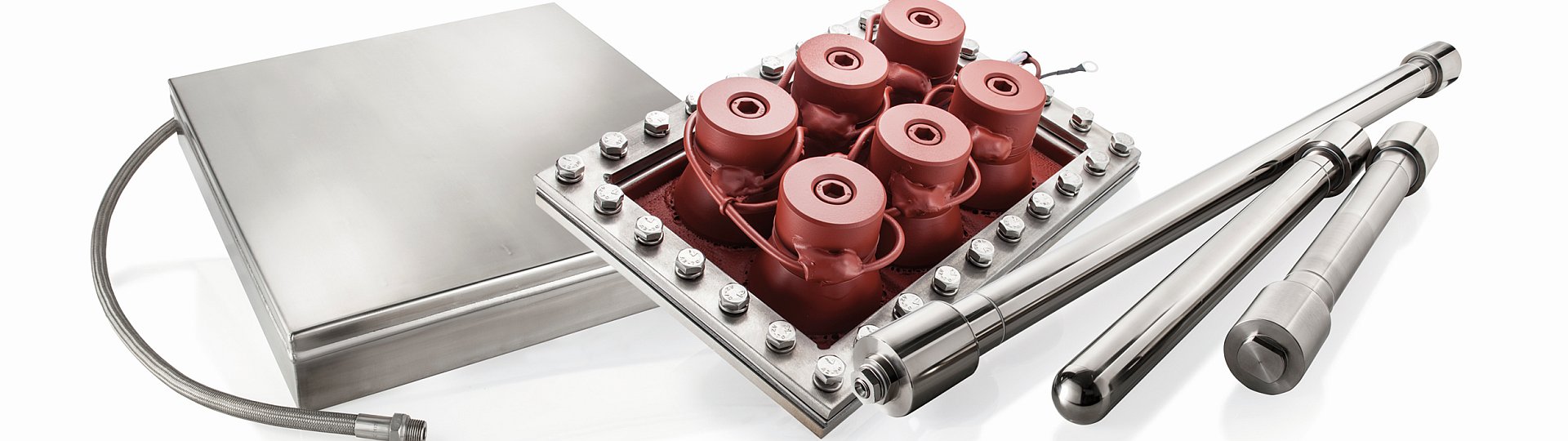

Ultrasonic build-in elements

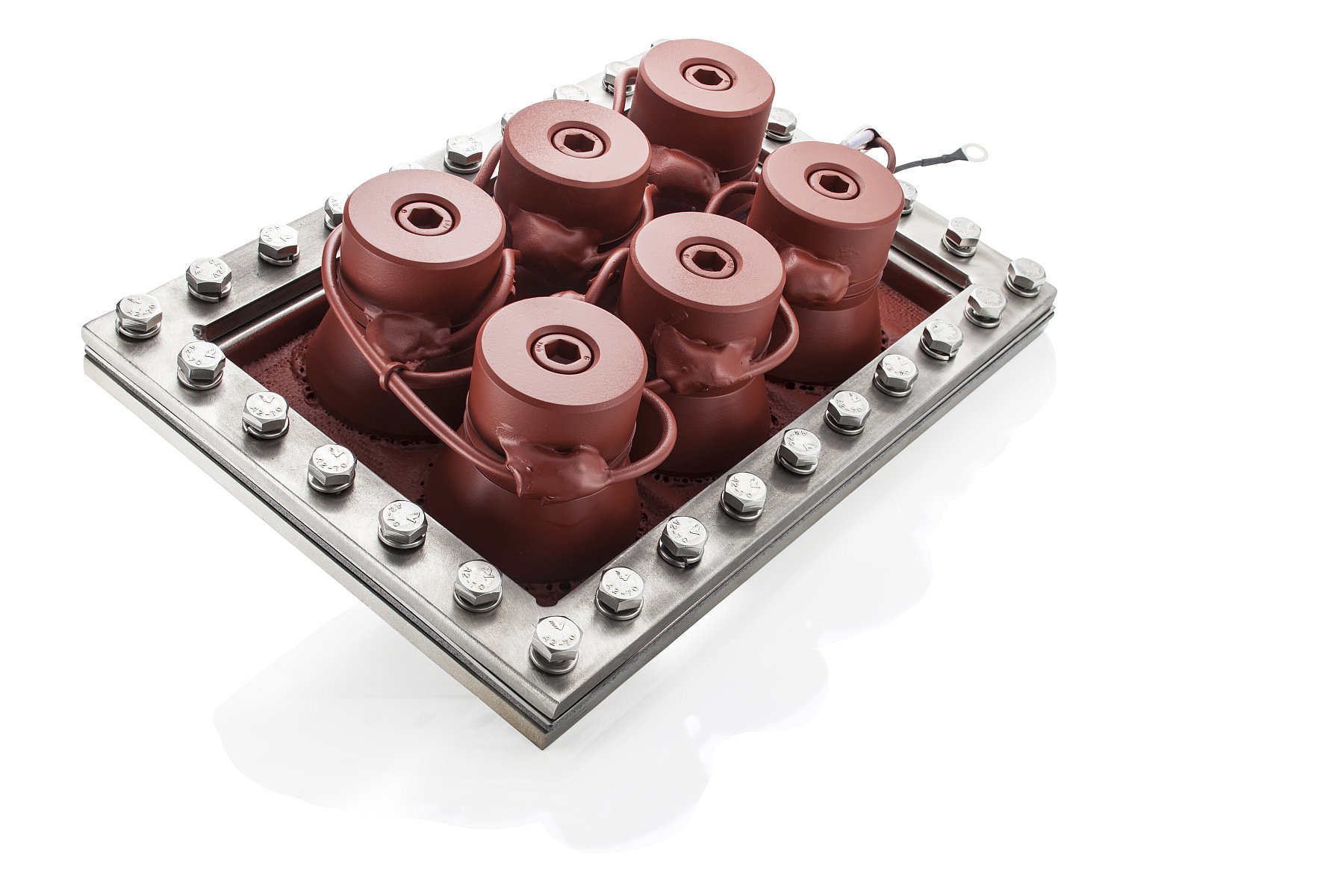

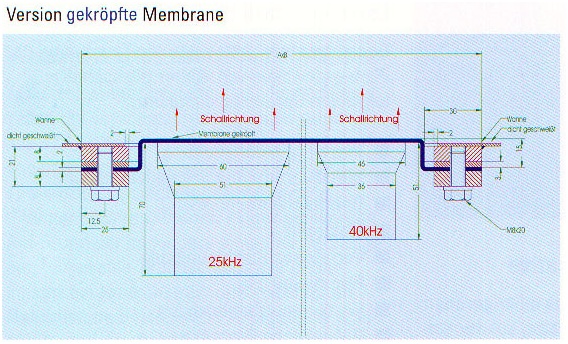

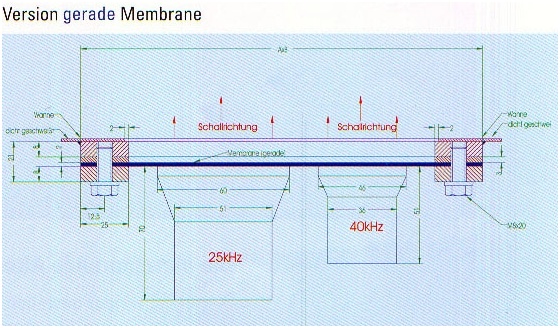

Flange plate transducers consisting of a straight or bended stainless steel plate, to which a number of ultrasonic transducers are secured appropriate to the desired output. The plate is flange-mounted from outside, with bolds, to an appropriate aperture in the cleaning tank by means of a welded frame, gasket and contact frame.
The transducers setting up ultrasonic vibrations which are transferred to the adjoining liquid. Flange plate transducers permit existing plants to be retrofitted for ultrasonic cleaning in cases where a reduction in the existing tank capacity cannot be accepted.
Advantages
- Several flange plates could be connected to one generator.
- Several combinations of ultrasonic power and dimensions
- High ultrasonic homogeneity.
- Suitable for high volume cleaning baths.
- Ideal set-up ultrasonic against product symmetry.
- Relative low investment.
Please raise your question
VARICLEAN benelux bv is specialist in ultrasonic cleaning for industrial and professional applications. On base of your cleaning requirement we would be pleased to provide you the right advise and an adequate solution.
